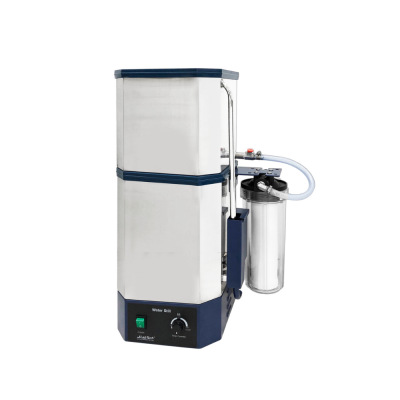

Basic Water Still LWD-Series, Labtech
Stainless Steel Chamber and Exterior Series
Unique Design & Safety Feature
With hydraulic temperature controller and a water float switch provides automatic operation
Protect heating element from over heat when water is low level.
Protect hot from the double walled condenser from boiler with one step.
All stainless Steel with Double Walled Chamber finisged with powder coated blue for two tone design color
Optional Device for Recycle system for Cooling Water.
฿0
฿0
ราคาสมาชิก
฿0
ราคาสมาชิก
฿0
Basic Water Still
รายละเอียดสินค้า
SPECIFICATION
| Model | LWD-104S | LWD-108S | |
| LWD-204SF (with prefilter) | LWD-208SF (with prefilter) | ||
| Dimensions (WxDxH mm) | 330x290x580 | 330x365x640 | |
| Capacity | 3.0-3.5L/hour Max. | 6.0-7.0L/hour Max. | |
| Heater | 3 kW | 6 kW | |
| Cooling water (approx.) | 30-50 L | 60-80 L | |
| Sealing | Silicone gasket | ||
| Operation | Fully automatic operation | ||
| Imdication lamp | Distill, Full | ||
| Controller | Hydraulic thermostat with main power switch | ||
| Materail | Interior | Stainless steel | |
| Exterior | Powder coating steel case | ||
| Heater | Stainless steel pipe | ||
| Safety | Low water & Over temperature protection | ||
| Electric supply | 220 V 50/60 Hz, 1 Phase | ||
| Power consumption (220V) | 14 A | 28 A | |
- Specifications can be changed without prior notice for quality improvement
Estimated packing details
| Model | LWD-104S | LWD-108S |
| LWD-204SF (with prefilter) | LWD-208SF (with prefilter) | |
| Dimension (approx.) (WxDxH mm) | 400x380x700 | 450x400x700 |
| Net weight (approx.) (kg) | 12 | 14 |
| Gross weight (approx.) (kg) | 13 | 20 |
- Actual packing details may be different. This is for your reference only
| Model | Description | |
| LWD-104S | S/S Basic water still | 3.0-3.5 L/hour |
| LWD-204SF | S/S Basic water still with prefilter | 3.0-3.5 L/hour |
| LWD-108S | S/S Basic water still | 6.0-7.0 L/hour |
| LWD-208SF | S/B Basic water still with prefilter | 6.0-7.0 L/hour |
